AC Drive

  1. خانه
  2. AC Drive

C200 Series
  • ارسال شده توسط : deltaltd-fa
  • بدون دیدگاه
  • AC Drive
 C200 Series
  Features
The VFD-C200 Series is an intelligent vector control micro drive that provides versatile control modes for motors and includes built-in PLC functions with capacity up to 5,000 steps. It is suitable for harsh environment applications with a strengthened thermal and anti-dust design that provides comprehensive protection.
  Specifications
‧uilt-in PLC program with 5,000 steps capacity
‧Built-in brake chopper
‧MODBUS RS-485 and CANopen (Slave)
‧The high-brightness LED keypad shares the same extension cable of the VFD-E/M/B Series to maximize operation distance
‧Supports open loop control of permanent motors (PM Sensorless)
‧Two high speed pulse input terminals MI7 and MI8 built-in with maximum speed up to 33kHz
‧Two high speed pulse output terminals DFM1 and DFM2 built-in with maximum speed up to 33kHz
‧New PCB coating for circuit (IEC 60721-3-3 class 3C2) and thermal design suitable for harsh environment applications
‧C200 Series Frame A supports wall mounted installationPower range
  Applications
Food packaging machinery, conveyors, textile machinery, woodworking machinery, fans, pumps

ادامه مطلب

VFD-F Series
  • ارسال شده توسط : deltaltd-fa
  • بدون دیدگاه
  • AC Drive

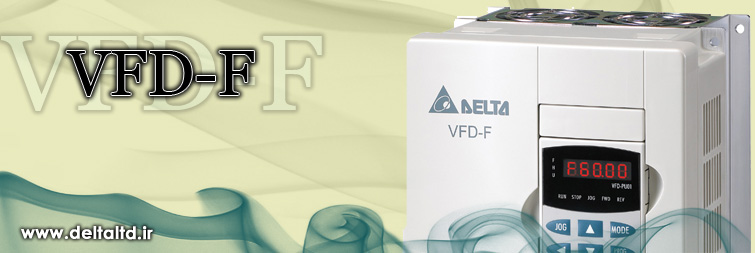

vfd-f

VFD-F Series
Features
Variable Torque AC Drive. Specifically designed for medium and high horsepower fan and pump applications. The F series offers an adjustable V/F curve and automatic voltage regulation. It also offers the capability of connecting and running consecutively four motors. A set of motors consisting of 1 variable-speed motor and 3 constant-speed motors is allowable.
Specifications
‧Output frequency 0.1 ~ 120 Hz
‧Adjustable V/f curve
‧16-step speed control and 15-step preset speed process control
‧Built-in PID feedback control
‧Time/fix amount circulation control
‧Built-in MODBUS communication, baud rate up to 38400 bps
‧Support communication module (DN-02, LN-01, PD-01)
Applications
Air conditioner for large buildings; wastewater treatment system; water supply system for large buildings; public water supply system, etc





















ادامه مطلب

VFD-M Series
  • ارسال شده توسط : deltaltd-fa
  • بدون دیدگاه
  • AC Drive

vfd-m

VFD-M Series
Features
Sensorless Vector Micro AC Drive. The compact design is ideal for small and medium horsepower applications. The M drive is designed to provide an ultra-low-noise operation, and includes several innovative technologies that reduce interference.
Specifications
‧Output frequency 0.1 ~ 400 Hz
‧Adjustable V/f curve and vector control
‧Carrier frequency up to 15 kHz
‧Auto torque boost & slip compensation
‧Built-in PID feedback control
‧Built-in MODBUS communication, baud rate up to 38400 bps
‧0 speed holding function
‧Built-in sleep / revival function
‧Support communication module (DN-02, LN-01, PD-01)
Applications
Packing machine; dumpling machine; treadmill; temperature/humidity control fan for agriculture and aquaculture; mixer for food processing; grinding machine; drilling machine; small size hydraulic lathe; elevator; coating equipment; small size milling machine; robot arm of injection machine (clamp); wood machine (two-side woodworking planer); edge bending machine, elasticizer, etc























ادامه مطلب

VFD-S Series
  • ارسال شده توسط : deltaltd-fa
  • بدون دیدگاه
  • AC Drive

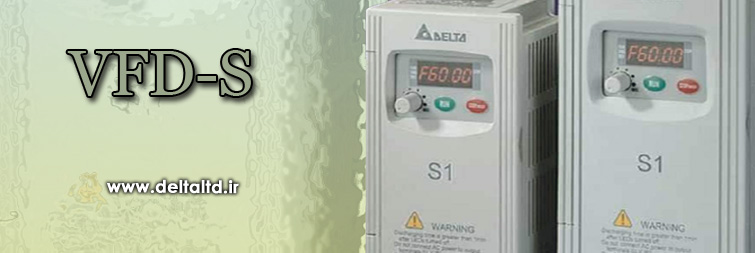

vfd-s

VFD-S Series
Features
General Purpose AC Micro Drive. Delta Electronics most cost effective general purpose drive. The VFD-S series drive is famous for its low-noise carrier frequency feature and easy to use keypad.
Specifications
‧Output frequency 1.0 ~ 400 Hz
‧Adjustable V/f curve
‧Carrier frequency up to 10 kHz
‧Built-in PID feedback control
‧Built-in MODBUS communication, baud rate up to 38400 bps
‧Momentary power failure or fault restart
‧Built-in Sleep / Revival function
‧Support communication module (DN-02, LN-01, PD-01)
Applications
Air conditioner for large buildings; water supply system for large buildings; temperature control of middle/large oven; webbing loom; packing machine; conveyer belt; fan of drying machine, etc





















ادامه مطلب

VFD-E Series
  • ارسال شده توسط : deltaltd-fa
  • بدون دیدگاه
  • AC Drive

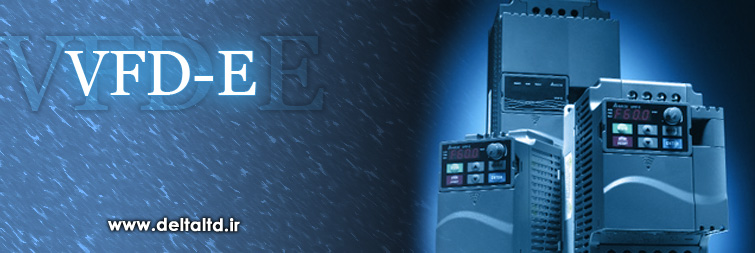

vfd-e

VFD-E Series
Features
Sensorless Vector AC Micro Drive. The VFD-E series represent Delta Electronics low horsepower, constant torque, IP20 rated Drive. Modular in design with flexible extension cards and a built-in PLC function, the E drive offers the ability to write and to execute simple Ladder Logic programs. This state-of-the-art series meets a full range of application requirements.
Specifications
‧Output frequency: 0.1~600Hz
‧Modular & compact design
‧Built-in PLC function
‧Built-in EMI filter (230V 1 phase / 460V 3 phase)
‧Optional Fieldbus Modules (DeviceNet, Profibus, LonWorks and
CANopen)
‧RFI-switch for mains
‧Easy DC BUS sharing
‧Flexible extension
‧Complete Protection
Applications
Smaller cranes; washing machines; treadmilsl; robot arm of injection machine (clamp); elevator; grinding machine; drilling machine; wood machine; webbing loom; air conditioner for large buildings; water supply system for large buildings, etc























ادامه مطلب

VFD-EL Series
  • ارسال شده توسط : deltaltd-fa
  • بدون دیدگاه
  • AC Drive

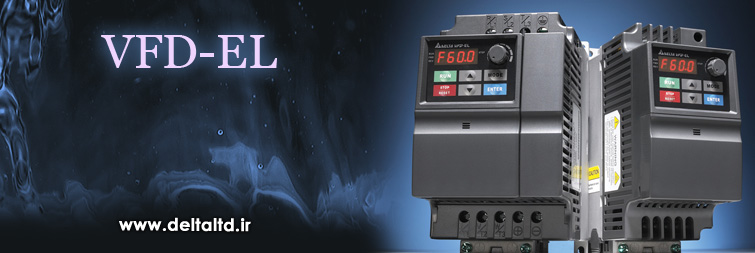

vfd-el

VFD-EL Series
Features
The VFD-EL series is multiple function new generation micro type AC drive. It has built in EMI filter, RFI switch, easy DC bus sharing for side-by-side installation, high precision current detection, overload protection, and a built In keypad.
Specifications
‧Output frequency: 0.1 ~ 600Hz
‧3 points adjustable V/f curve
‧Built-in PID feedback control
‧RFI-switch for IT mains
‧Built-in EMI filter (for models 230V 1-phase and 460V 3-phase)
‧Use RS-485 communication interface (RJ-45) with Modbus protocol
‧Optional communication modules for multiple communication protocols, such as Profibus, DeviceNet, LonWorks and CANopen
‧Complete protection function
Applications
Small size pump & fan, blowing machine, conveyer belt, simple DIY processing equipment

ادامه مطلب

VFD-B Series
  • ارسال شده توسط : deltaltd-fa
  • بدون دیدگاه
  • AC Drive

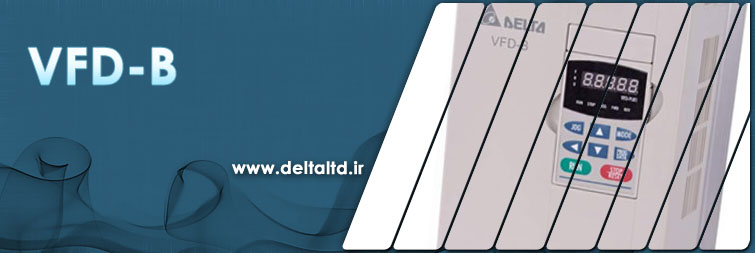

vfd-b

VFD-B Series
Features
Sensorless Open and Closed Loop Vector AC Drive. The VFD-B series represents Delta’s NEMA1 general purpose AC drive. The VFD-B series drive is rated to provide constant torque, featuring open and closed loop vector control. Delta offers an optional 2000 Hz high speed output that can be factory programmed at the customer’s request.
Specifications
‧Output frequency 0.1 ~ 400 Hz
‧Adjustable V/f curve and vector control
‧Master/Auxiliary and 1st / 2nd frequency source selectable
‧16-step speed control and 15-step preset speed process control
‧Built-in PID feedback control
‧Auto torque boost & slip compensation
‧Built-in MODBUS communication, baud rate up to 38400 bps
‧Support communication module (DN-02, LN-01, PD-01)
Applications
Air conditioners for large buildings; woodcarving machine; punching machine; wastewater treatment systems; crane drive and swivel; washing machine; vertical stamping machines; compressor; elevator; escalator; circular loom; flat knitting machine; pasta machine; four-sided woodworking planer, etc





















ادامه مطلب

C2000 Series
  • ارسال شده توسط : deltaltd-fa
  • بدون دیدگاه
  • AC Drive

c2000

C2000 Series
Features
The VFD-C2000 series is a high-level field oriented control AC motor drive with a high-performance variable-frequency technology, FOC control. It features versatile driving controls, modular design, wide variety of applications, easy maintenance, low malfunction rate, self diagnosis and competitive market price and brings customers not only the high-efficiency construction but also the most economic solution to compete with the global market.
Specifications
‧Speed/torque/position control mode, dual rating design (Normal duty/heavy duty)
‧Outstanding 4-quadrant torque control/limit
‧2 in 1 (induction motor and synchronous motor)
‧Built-in Delta PLC function, safe stop function and brake unit
‧Support of various network protocols
‧Synchronous position control
‧Long-life design and life detection of important components
‧Enhanced protections and adaptation to ambient conditions
‧Complies with global safety standards, including CE, UL and cUL
‧Modular design for easy maintenance and many extensions
‧High-speed communication interface with built-in CANopen and MODBUS communication (optional cards for PROFIBUS-DP, DeviceNet, MODBUS TCP and EtherNet/IP)
Applications
Crane and printing machines

























ادامه مطلب

CP2000 Serires
  • ارسال شده توسط : deltaltd-fa
  • بدون دیدگاه
  • AC Drive

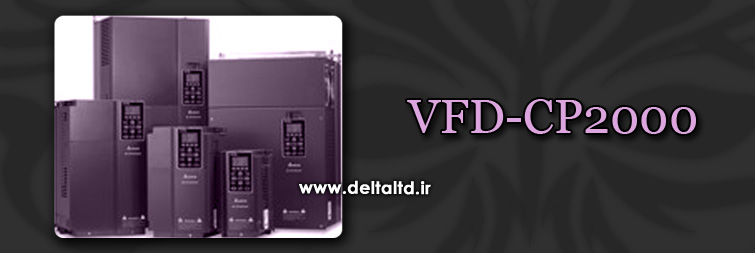

cp2000

CP2000 Serires

CP2000 Serires
Features
Delta’s Sensorless Vector Control Drive CP2000 Series has extended the idea of energy saving and uses this principal as the basis of its design. The CP2000 is specifically designed for applications such as air blowers, pumps and HVAC drives with its intelligent PID control providing the greatest efficiency. The Sensorless Vector Control (SVC) offers timely response to load torque increase/decrease which satisfies customer requirements for load changes while enhancing motor performance. A 3-step V/F curve response is used in the variable torque environment to adequately adjust the input voltage and attain the greatest overall performance; this function is especially helpful in pumps and fans applications. It also includes additional functions for operation and protection in variable load environments, such as flying starts, auto-acceleration/deceleration, momentary power loss restarts, auto-tuning, and more. The CP2000 series provides you with the ultimate energy-saving solution for your applications.
Specifications



‧With a built-in 10K steps Delta PLC allows user to execute distributional control and independent control when connecting to a network system. Delta CP2000 series drives provide you the intelligent control possibility beyond your imagination.
‧The calendar function allows user to program the PLC procedure, the ON/OFF in chronological order, the daylight saving time and etc.
‧A wide range of models (0.75~400KW) to fulfill the demands of different industries.
‧The modularized design eases the maintenance and expansion.
‧High speed communication interfaces with MODBUS protocol and BACnet protocol built in. Diverse communication methods to satisfy clients@@ needs on multi-controls. So the following options are available for you: the ProfiBUS-DP, the DeviceNet, the MODBUS TCP, the Ethernet-IP and the CANopen Cards.
‧Long-life design and self diagnosis for key components.
‧Special PCB coating design (Printed Circuit Board) for enhancing environmental tolerance.
‧Complied with global safety standards: CE, UL and cUL
‧Standard LCD model (IP20/NEMA1) with built-in PLC to support up to 10K steps
‧Excellent heat-sink design. Able to operate at 50°C ambient temperature and to adjust automatically rated output value to make the AC drive to work continuously.
‧Run fire mode while emergency to have uninterrupted smoke releasing and pressure adding
‧Multi pumps control at fixed amount, fixed time circulating control. Able to control 8 pumps at the same time. (Such as Image01 and Image02, optional multi-control relay card is required.)






Applications
Fixed-displacement pumps (fix flow and fix time), building automation, factory automation, HVAC drives, cooling pumps, cooling towers and general motor applications.


ادامه مطلب

VFD-VL Series
  • ارسال شده توسط : deltaltd-fa
  • بدون دیدگاه
  • AC Drive

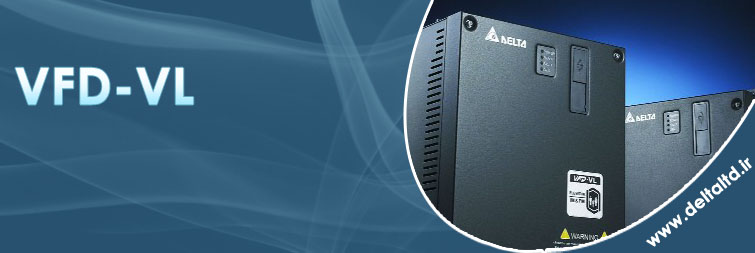

VL

VFD-VL Series
Features
Delta’s VFD-VL series AC motor drive designed for elevators are based on years’ of experiences in designing AC motor drives, and the latest control technology adopted in VFD-VL will offer you high reliability and safety. All the features of VFD-VL are to meet the needs from the market, e.g. controlling the brake for motors, backup electricity, built-in brake loop, auto-tuning of motor parameters, numerous encoder interfaces, bountiful communication functions and self protection, etc.
Specifications
‧Output frequency: 0.00 ~ 120.00Hz, offering output torque of more than 150% when at zero speed.
‧The vector control by FOC, enabling smooth and comfortable operation of the elevator.
‧S-curve acceleration/deceleration and battery for abnormal power shut-down.
‧Overload capacity: 150% of rated current for 1 minute and 200% of rated current for 10 seconds
‧Complied with EN954-1 (safety-relay) standard.
‧The built-in brake module saves you installation space and cost
‧Built-in with Modbus/CAN bus communication interface.
‧With optional LCD digital keypad and PC tuning software.
Applications
Home elevator, cargo elevator, passenger elevator, residential elevator and crane.























ادامه مطلب
